콘솔에서 마이그레이션 하기.

조회 수 13426 추천 수 0 댓글 0
?

단축키

Prev이전 문서

Next다음 문서

크게 작게 위로 아래로 댓글로 가기 인쇄 첨부

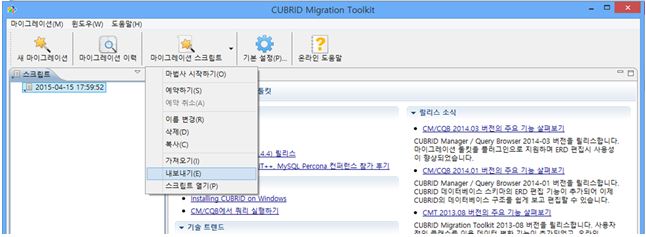

마이그레이션 마법사 5단계에서 저장한 마이그레이션 스크립트를 클릭하고 툴바에서 마이그레이션 스크립트 > 내보내기를 클릭하면 해당 스크립트를 XML 파일로 출력할 수 있으며 SSH를 이용해 원격 서버로 내보낼 수도 있다.

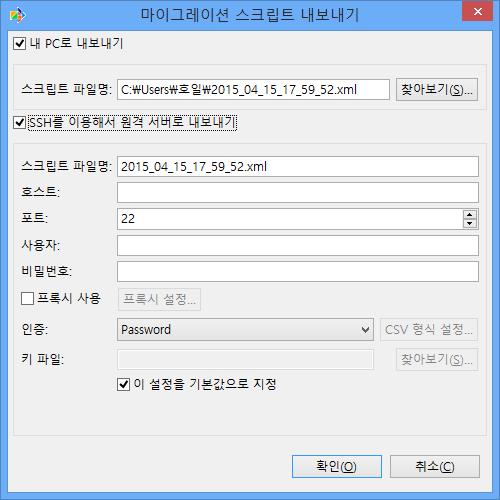

마이그레이션 스크립트 내보내기 대화 상자에서는 내 PC에 저장하거나 SSH 를 경유해 원격 서버에 저장 할 수 있다.






큐브리드 FTP 웹사이트의 CUBRID_Tools/CUBRID_Migration_Toolkit 디렉터리(http://ftp.cubrid.org/CUBRID_Tools/CUBRID_Migration_Toolkit)에서 다음과 같은 마이그레이션 툴킷 콘솔 버전을 다운로드 할 수 있다.



CUBRID-Migration-Toolkit-console-2014-build-4597-linux.tar.gz

CUBRID-Migration-Toolkit-console-2014-build-4597-windows.gz



압축을 푼 후 migration.sh를 실행한다.



$ sh ./migration.sh

Thank you for using CUBRID Migration Toolkit(CMT) Console.



Usage in windows: migration.bat <utility-name> [options]

Usage in linux: migration.sh <utility-name> [options]



Available <utility-name> (Default is “start”):

    Start: Start a migration task.

    Log: Review a migration work’s log.

    Report: Review amigration work’s result.

    Script: Build a migration script with online source and default options.



Please visit http://www.cubrid.org  for more information.



마이그레이션 명령(start) 외에 마이그레이션이 끝난 후 생성되는 로그(log)나 보고서(report)를 보는 명령도 제공한다.  Script 명령을 이용하면 원본 데이터베이스에 연결해 스키마 정보를 마이그레이션 스크립트에 포함한 후 원본 데이터베이스를 연결할 수 없는 곳에 있는 마이그레이션 툴킷  GUI에서 이 마이그레이션 스크립트를 열어 매핑 작업을 할 수 있다물론, 작업 후에 다시 큐브리드 마이그레이션 툴킷 콘솔로 업로드해서 서버에서 마이그레이션을 시작할 수 있다.

리눅스 터미널에서 마이그레이션 하기 위해 여기서는 start 명령을 이용한다.  sh ./migration.sh start를 실행해보자.



$ sh ./migration.sh start

Thank you for using CUBRID Migration Toolkit(CMT) Console.

Please specify the migration script file:



마이그레이션 스크립트 내보내기로 출력한 스크립트 파일 경로를 입력하면 다음과 같이 원본 데이터베이스에 연결해서 마이그레이션을 시작한다.

Please specify the migration script file: migration-demodb.xml

Reading <migration-demodb.xml>

Reading source database schema …

Migration started at 2014-07-20 18:02:28

100%

Migration is finished.

Migration Report summary:

Time used: 00 00:00:07.516

     table: Exported[11];  Imported[11]

     view: Exported[0];  Imported[0]

     primary key: Exported[10];  Imported[10]

     foreign key: Exported[4];  Imported[4]

     index:  Exported[0];  Imported[0]

     sequence: Exported[2];  Imported[2]

     trigger: Exported[0];  Imported[0]

     function: Exported[0];  Imported[0]

     procedure: Exported[0];  Imported[0]

     record: Exported[19202];  Imported[19202]



진행률이 100%가 되고 간략한 마이그레이션 종료 보고서가 출력된다물론 자동화를 위해 다음의 파라미터를 지정하면 사용자의 입력을 기다리지 않고 바로 마이그레이션이 시작되게 할 수 있다.

Usage in Windows: migration.bat start [options] [migration script file]

Usage in Linux: migration.sh start [options] [migration script file]



Available options:

-s,      Configuration Name of source in db.conf.

     -t,      Configuration Name of target in db.conf.

     -sd,     Full name of source database's JDBC driver file.

     -td,     Full name of target database's JDBC driver file.

     -tp,     Path to save exported files if the configuration is setting to export source DB to files.

     -xml,    MySQL XML dump file.

     -mm,     Monitor mode.  The value should be one of [error, info, debug]

     -rm,     Report mode.  The value should be one of [error, info, debug]

     -do,     CMT only migrates data.  The value should be one of [yes, no]



, 다음과 같이 실행하도록 옵션을 추가하면 별도 입력 없이 마이그레이션을 시작할 수 있기 때문에 crontab  등에 지정하고 주기적으로 마이그레이션 해야 하는 경우에 유용하다.

sh ./migration.sh start migration-demodb.xml



그런데 마이그레이션 툴킷 GUI에서 마이그레이션 스크립트를 작성하면  JDBC 드라이버의 경로가 실제 마이그레이션 콘솔이 동작하는 서버와 다를 수 있다이런 경우에는 –sd, -td 옵션을 이용해 JDBC 드라이버를 직접 지정할 수 있다.

sh ./migration.sh start migration-demodb.xml  -sd  jdbc/ojdbc6.jar  -td  jdbc/JDBC-9.3.0.026-cubrid.jar



마이그레이션 완료 후 보고서를 보려면 {큐브리드 마이그레이션 툴킷 콘솔 설치 경로} /workspace//report에 있는 .mh 파일을 큐브리드 마이그레이션 툴킷 GUI에서 열어 볼 수 있다터미널에서 바로 보고 싶다면 다음과 같이 report 명령을 이용하면 된다.



sh ./migration.sh report

Thank you for using CUBRID Migration Toolkit(CMT) Console.



Usage in Windows: migration.bat report [options] [migration history file(*.mh)]

Usage in Linux: migration.sh report [options] [migration history file(*.mh)]



Available [options]:

    -l,    To show the latest migration report automatically.



Please visit http://www.cubrid.org for more information.

Available migration history file(s):

    1405846948752.mh

    1405847351180.mh





Available migration history file(s) 항목에서 마이그레이션이 2회 실행됐고 그 보고서가 저장 돼 있음을 알 수 있다다음과 같이 보고서 파일(*.mh)을 옵션으로 추가하면 결과 보고서를 볼 수 있다.

sh ./migration.sh report  1405846948752.mh

Thank you for using CUBRID Migration Toolkit(CMT) Console.



Reading migration history file: <1405846948752.mh>



[Overview]

    [table]

           Total:[11]

       Exported:[11]

       Imported:[11]

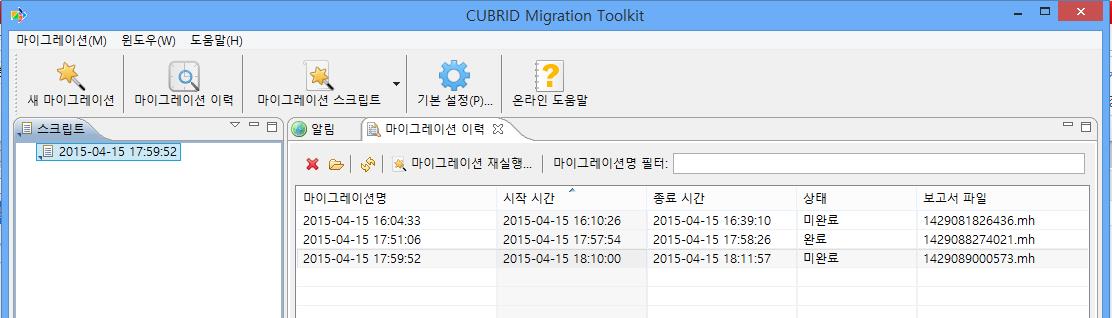

보고서 파일(*.mh) GUI 화면에서 보려면 툴바에서 마이그레이션 이력을 클릭한다. 마이그레이션 이력탭이 열리면 열기를 클릭하고 해당 .mh 파일을 더블클릭한다마이그레이션 이력 목록에 해당 보고서가 추가되면 이를 더블 클릭해 상세한 보고서를 확인 할 수 있다.


큐브리드 마이그레이션 툴킷이 없으면 데이터베이스를 마이그레이션 할 때 스키마 이전을 위해 DDL 구문을 일일이 작성하고 별도의 스크립트를 작성해 실행해야 한다물론, 데이터의 양이 많은 경우 JDBC를 경유해서 데이터를 추출하는 과정에서 많은 시간이 소요될 수 있으나, 큐브리드 마이그레이션 툴킷은 번거로운 작업을 하나의 도구에서 표준화하고 자동화 할 수 있다는 것에 의의가 있겠다.
